WebGL · Visualisation

FLOPSAR 3D

A monitored server estate, rendered in three dimensions

A dashboard for the FLOPSAR JVM diagnostics suite that draws the machines you run as a live 3D scene instead of a table of numbers. The camera flies itself around the estate; when something breaches its threshold, the camera goes and looks at it. Written in C++ and OpenGL 1.1 in 2013, rebuilt from the ground up as a WebGL application in 2026.

Try the live demo How it was rebuilt

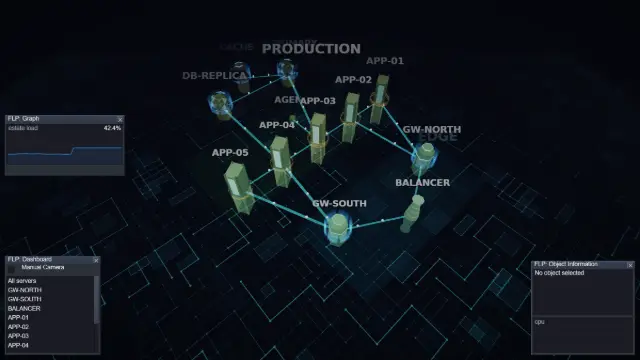

FLOPSAR 3D: the camera orbits the estate, then flies to a machine that has breached its CPU threshold

What it is

FLOPSAR is a fault detection and diagnostics suite for Java systems: agents attach to running JVMs, watch what the application actually does at method level, and stream what they see back to a central server. FLOPSAR 3D is a front end for that data — not another chart page, but a room you can look around.

Every monitored system becomes an object on a lit surface, grouped into tiers — ingress, application, persistence. Links between them carry visible traffic. Colour tracks load: green through amber to red. Machines that cross their alert threshold throw a beam of light straight up, ring the floor with a shockwave, and pull the camera to them.

The point is peripheral vision. A wall screen showing forty systems does not need you to read it — it needs you to notice, from across the room, that something has gone red and that the camera has already flown there.

Live demo

The real client, running here in your browser — the same code, driven by a simulated estate instead of a live FLOPSAR server. Tick Manual Camera to take control, then click a machine to inspect it.

Requires WebGL. Roughly 600 KB of JavaScript, no build step, no external libraries.

The 2026 rebuild

The original was a Windows desktop binary built on SDL 1.2 and fixed-function OpenGL, sitting on a bundled copy of GLUI — my own widget toolkit. GLUI has since been rewritten in C, and the rewrite dropped the 3D half entirely. That turned a port into a rebuild.

2013

C++03, SDL 1.2, OpenGL 1.1 immediate mode
Selection via glSelectBuffer — gone from modern GL
Two shapes for everything: a gear and a cube
Flat unlit colour, a bitmap pasted behind the scene
Animation counted in frames, so it ran faster on faster machines
No data: the connector returned rand(), alerts were triggered by pressing 0–9

2026

WebGL with per-pixel lighting, rim light, fog and a bloom pass
Ray–box picking against the scene's own bounds
Racks, gateways, data cores, pylons — roles you can tell apart
A procedurally drawn circuit surface with reflections underneath
Everything in seconds, identical at 30 or 144 Hz
A real connector model with metrics and thresholds, fed over WebSocket

What carried over, and what did not

The behaviour is the original

One machine alerting focuses the camera on it. Two or more pull back to a wider orbit that holds them all. When it clears, the camera returns to its idle loop. That choreography — and the Catmull-Rom splines it flies on — is a line-by-line port.

The scene file is unchanged

The same XML describes prototypes, tiers, positions, links and the windows each object opens. A desktop build reads the same files. One tag was added: <connector>, naming the metric and the thresholds — something the original had no way to express.

A 3D layer had to be written

The GLUI rewrite is a 2D widget toolkit: no camera, no meshes, no matrices, no depth pass. Around 1,200 lines of vector maths, mesh generation, camera paths and picking were written from scratch — structured to mirror a future C port rather than leaning on a framework.

No dependencies

No three.js, no bundler, no npm. Plain ES modules, raw WebGL, and GLUI-JS for the 2D panels. Textures are generated on a canvas at load time, so the client ships no image assets at all.

The panels are real GLUI

The windows, list, checkbox and text panes are GLUI-JS gadgets — the JavaScript mirror of the C toolkit. The one gadget it lacked, a time-series graph, was written in the same style so it can be moved into GLUI proper.

The desktop path stays open

Scene model, bounding boxes, camera paths and the alert rules contain no GL and no DOM. That half is portable as-is; a native build needs only a renderer behind the same small interface.

A look at the code

Two pieces that shape what you see: the rule that decides where the camera looks, and the shading that gives the estate its depth.

flp_render.js — alert-driven camera

/* One alerting machine focuses it. Two or more pull back to a wider
   orbit. None returns to the idle loop. Only fires on a change. */
updateCameraForAlerts(lastAlert) {
  if (this.oldAlertObjects === this.alertObjects) return;
  if (this.manualCamera) return;

  const mg = this.mainGroup();

  if (this.alertObjects > 0) {
    if (this.alertObjects === 1 && lastAlert) {
      this.setSelected(lastAlert);
      this.camera.changeTarget(lastAlert.camPath, null, lastAlert.staticPos);
    } else if (this.oldAlertObjects < 2) {
      this.setSelected(null);
      this.camera.changeTarget(mg.camMoveAlertPath, mg.camTargetAlertPath,
                               mg.camTargetPath.getActivePoint());
    }
  } else {
    this.setSelected(null);
    this.camera.changeTarget(mg.camMovePath, mg.camTargetPath,
                             mg.camTargetPath.getActivePoint());
  }
}

flp_gl.js — fragment shader

vec3 n = normalize(vNormal);
vec3 v = normalize(uCamPos - vWorld);
// the meshes are open shells, so light both sides
if (dot(n, v) < 0.0) n = -n;

float diff = max(dot(n, normalize(uLightDir)), 0.0);
float wrap = 0.5 + 0.5 * n.y;                     // sky / ground fill
float rim  = pow(1.0 - max(dot(n, v), 0.0), 3.0);   // fresnel edge

vec3 lit = rgb * (0.30 + 0.55 * diff + 0.25 * wrap) + rgb * rim * 0.65;

// emissive surfaces skip attenuation and push past 1.0, so the
// bloom pass picks them up: this is what makes an alert glow
rgb = mix(lit, c.rgb * 1.55, uEmissive);

float fog = clamp((length(uCamPos - vWorld) - uFogNear) /
                 (uFogFar - uFogNear), 0.0, 1.0);
fog *= (1.0 - uEmissive * 0.65);            // alerts stay visible far off
gl_FragColor = vec4(mix(rgb, uFogColor, fog), c.a);

Screenshots

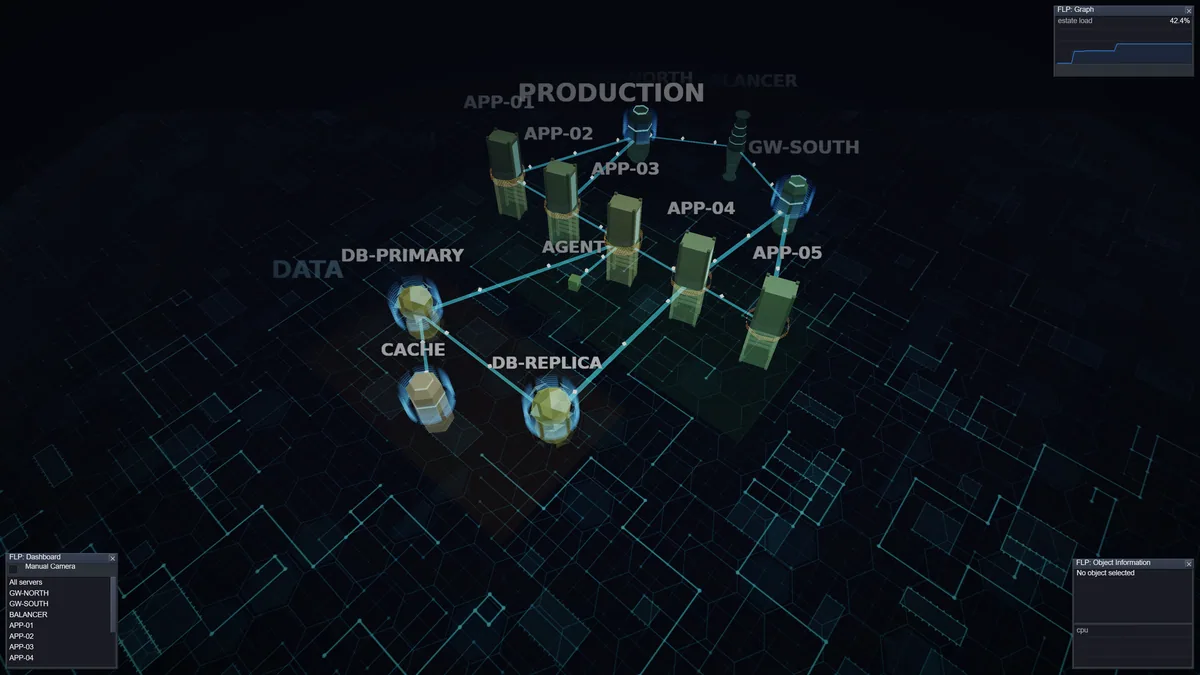

The production estate at rest, camera on its idle orbit — Idle orbit — three tiers, links carrying traffic, colour tracking load

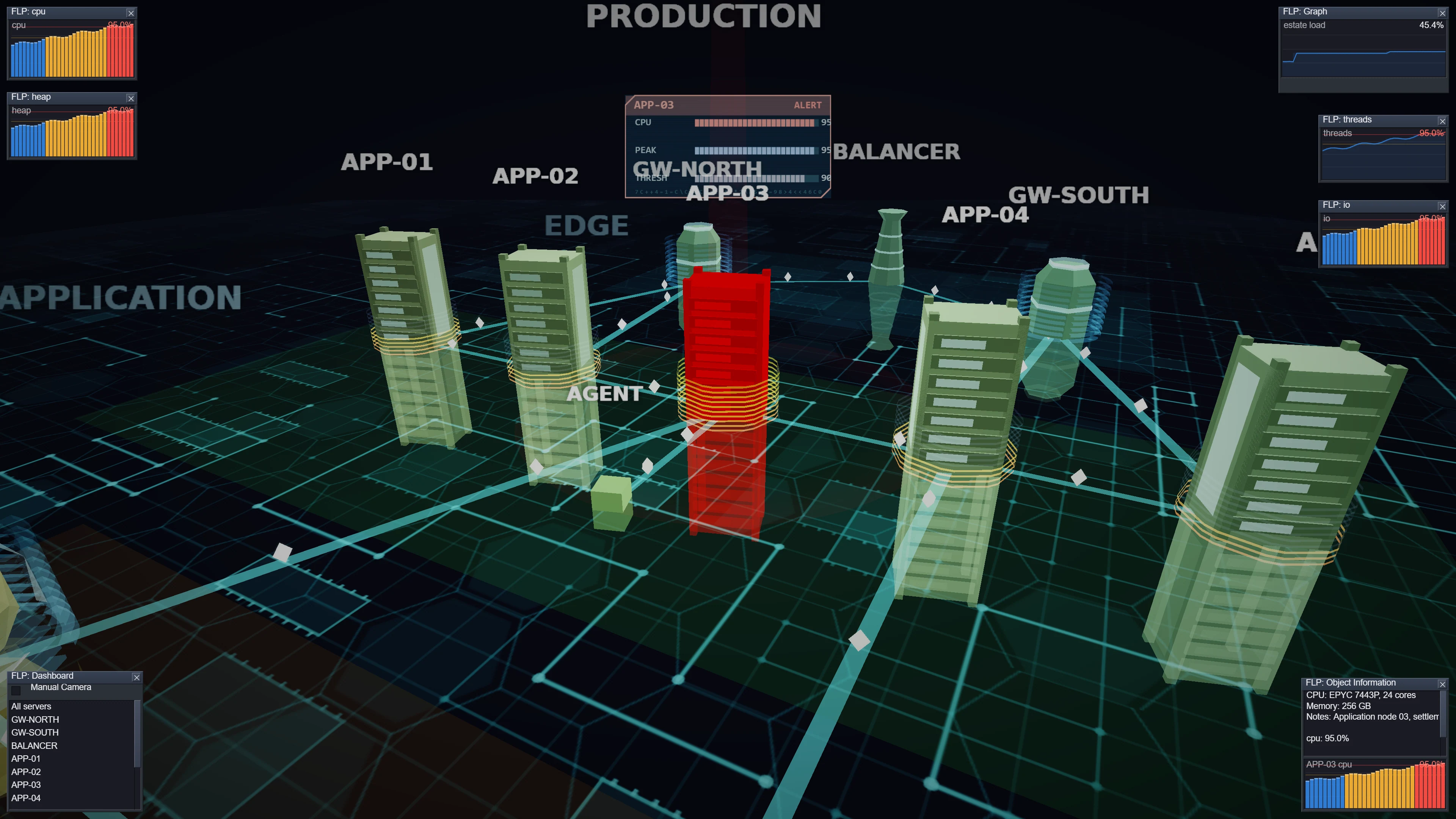

A single application node in alert, with the camera focused on it — One node over threshold: the camera flies in and its metric windows slide on

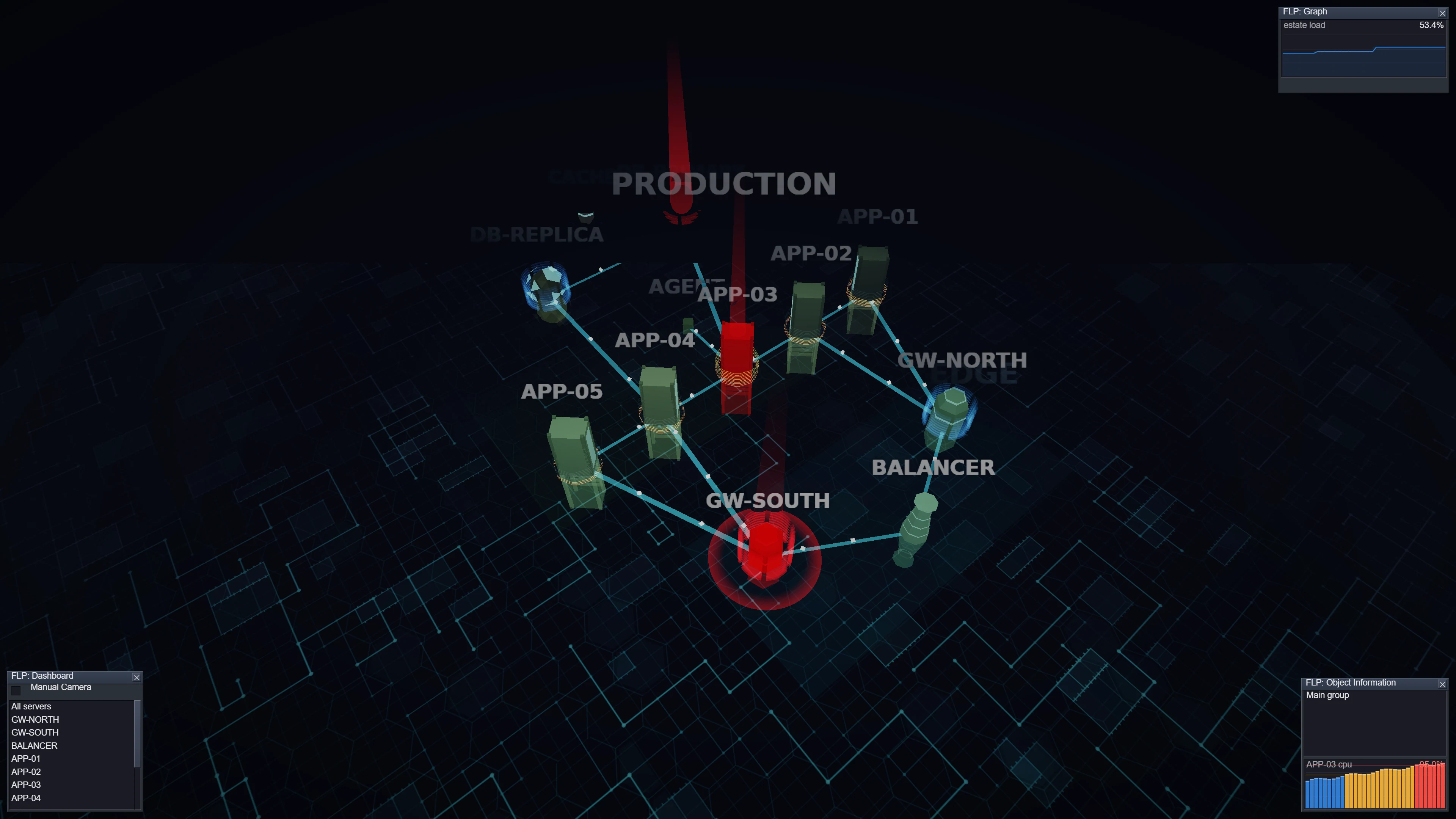

Several machines alerting, camera on the wide orbit — Several at once — the camera pulls back to hold them all in frame

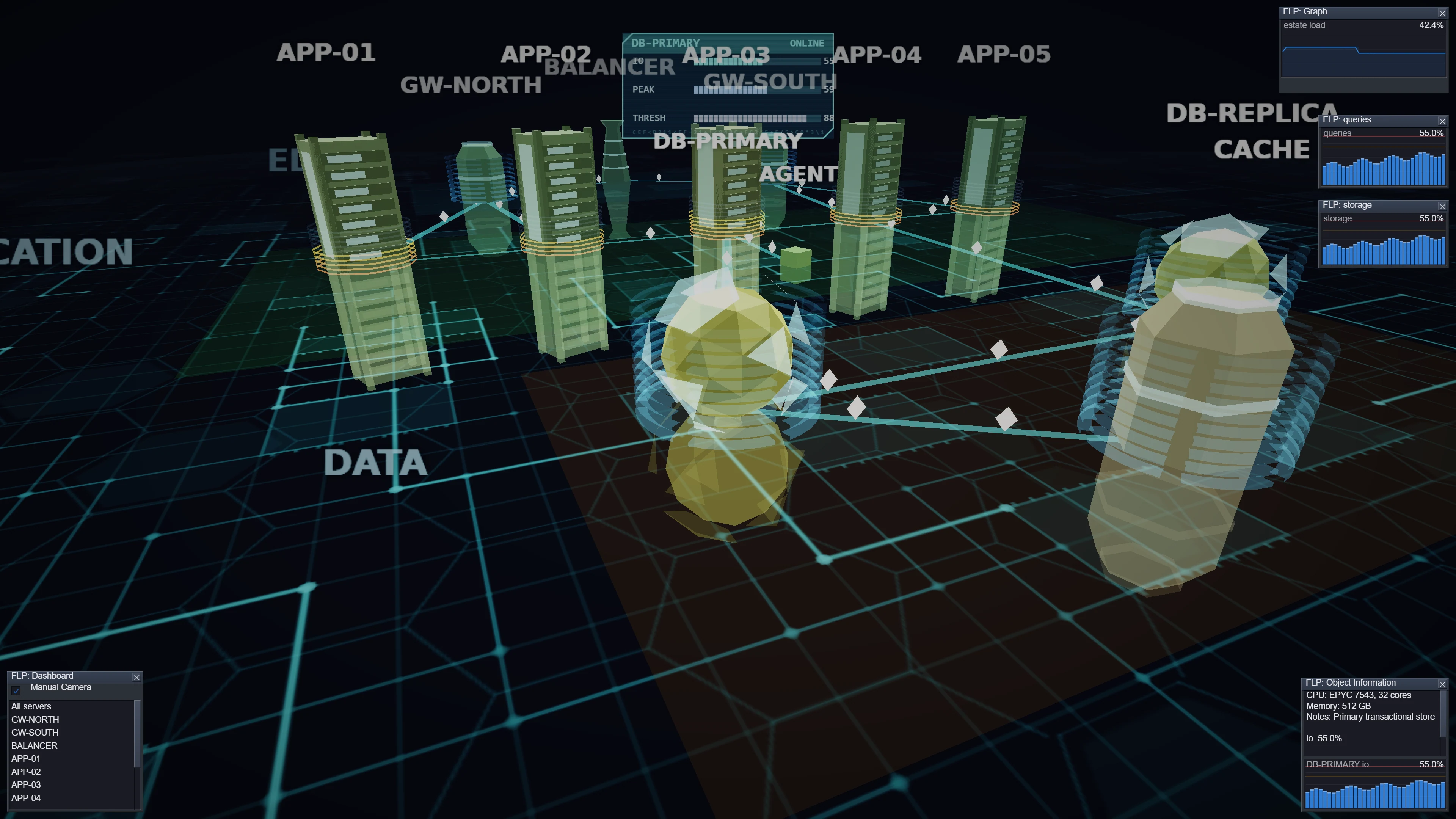

Manual camera, a data core selected and inspected — Manual camera: click any machine to select it and read its history

Click any screenshot for the full 3840×2160 capture.

Built with

WebGL 1, hand-written — shaders, matrix stack, bloom, no 3D library
GLUI-JS for the 2D windows, list and text panes
Procedural geometry and canvas-generated textures, zero image assets
Plain ES modules — no bundler, no npm, no build step
A small C service over libfdbc feeds live metrics by WebSocket
Ported from C++03 / SDL 1.2 / OpenGL 1.1 / GLUI (2013)
